ACECO FINGER JOINT TOOLING
AceCo Precision Tools is a leading manufacturer of finger joint tooling for the secondary wood working industry. With our exclusive “Finite Finish”, and the highest quality of materials available, we offer the finest finger joint tooling in the industry. AceCo tooling insures tool life, joint consistency, and accuracy that far exceeds other manufacturers. The AceCo finger joint tooling line includes a wide selection of standard and custom finger joint heads, high-speed steel finger joint cutters, specially treated finger joint cutters, carbide finger joint cutters and Evolution 3 finger joint cutters, as well as a comprehensive line of finger joint accessories.
Types of Finger Joints
Reverse
Feather
Male-Female
Reverse Resaw
Male-Female Resaw
Vertical Feather
NON-STRUCTURAL

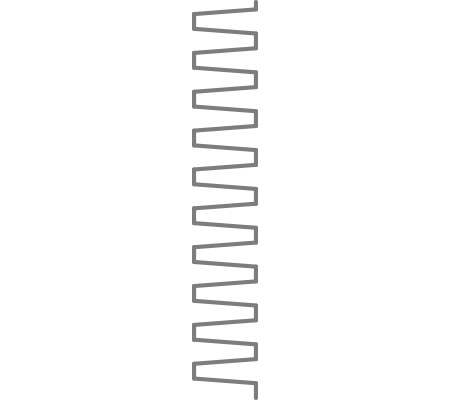

Thin Cutter: C16-237
Joint = 4mm(.157″)
Tip = .97mm(.038″)
Thin Cutter: C16-288
Joint = 4mm(.157″)
Tip = 1.12mm(.044″)

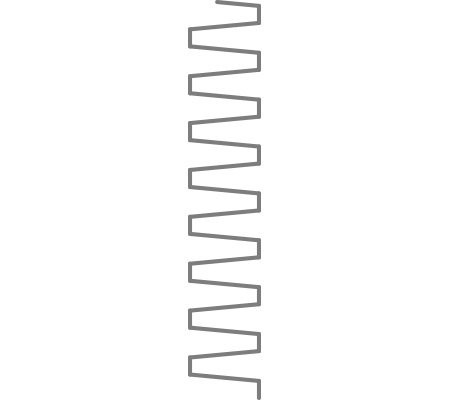

Thin Cutter: C16-249
Joint = 4.5mm(.177″)
Tip = 1.12mm(.044″)

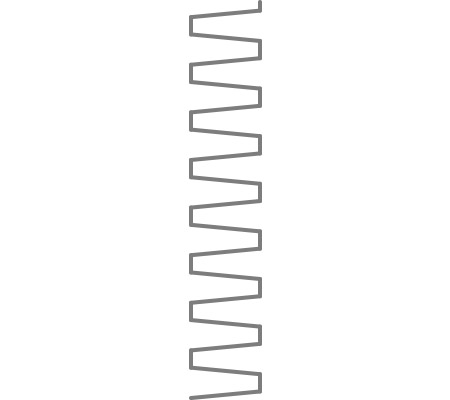

Thin Cutter: C16-2343
Joint = 4.7mm(.185″)
Tip = 1.15mm(.0453″)

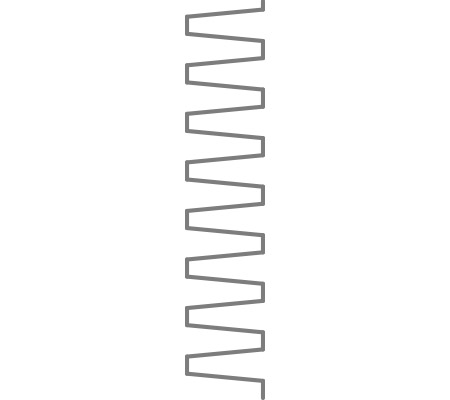

Thin Cutter: C16-217
Joint = 5mm(.197″)
Tip = 1.12mm(.044″)

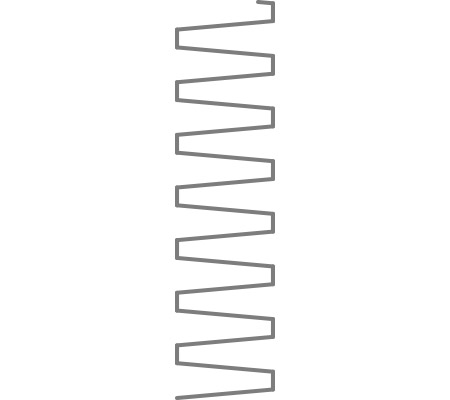

Thin Cutter: C16-104
Joint = .250″ (6.35mm)
Tip = .047″ (1.19mm)

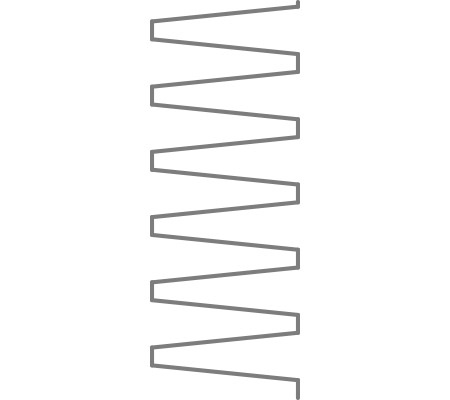

Thin Cutter: C16-048
Joint = .375″ (9.53mm)
Tip = .046″ (1.17mm)
Thin Cutter: C16-166
Joint = 10mm(.394″)
Tip = .60mm(.0236″)
SUB-STRUCTURAL

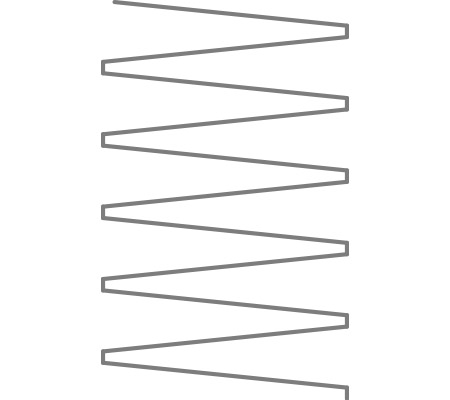

Thin Cutter: C16-159
Joint = .656″ (16.66mm)
Tip = .029″ (.74mm)

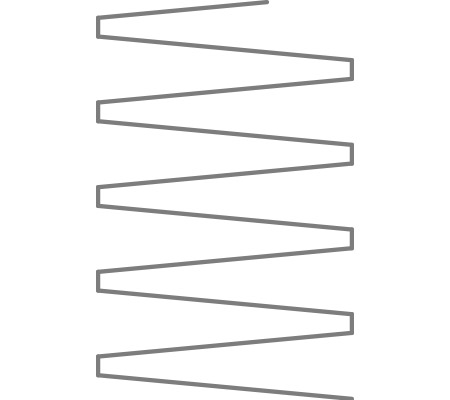

Thin Cutter: C16-275
Joint = .610″ (15.49mm)
Tip = .046″ (1.17mm)

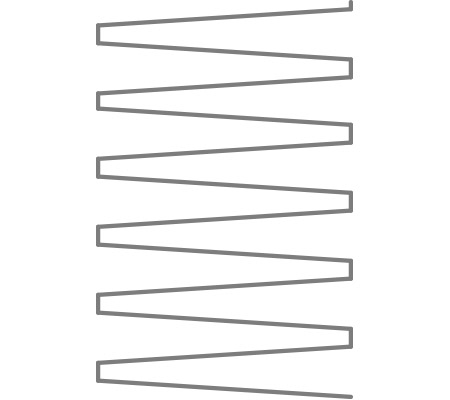

Thin Cutter: C16-190
Joint = .625″ (15.88mm)
Tip = .044″ (1.12mm)
STRUCTURAL

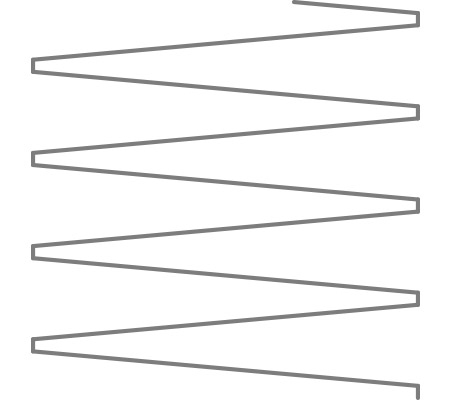

Thin Cutter: C16-028
Joint = .987″ (25.07mm)*
Tip = .031″ (.79mm)
*with .0165″ spacer
Joint = 1.113″ (28.27mm)
Tip = .030″ (.76mm)
Thin Cutter: C16-016
Joint = 1.113 (27.28mm)**
Tip = .032″ (.81mm)
**with .022″ spacer
